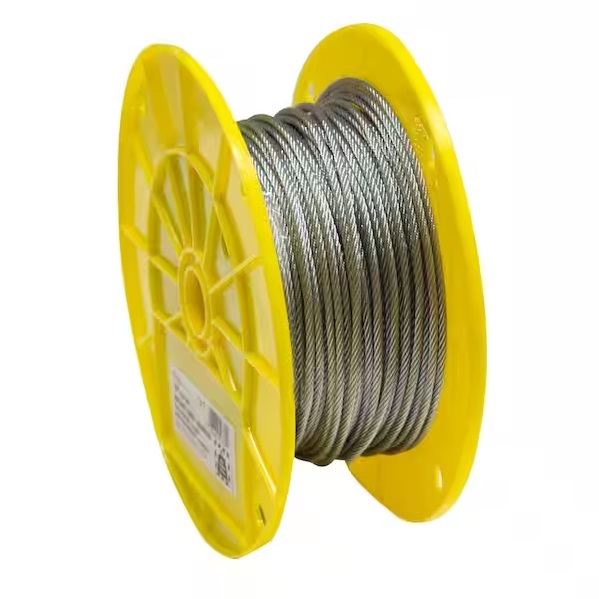

1/8" X 1" Galvanized Aircraft Cable 503772

KingChain galvanized aircraft cables are used for many material handling applications and have typical home uses for garage door cables, winch lines, tie-downs, dog runs, hanging signs, and guy wires for flagpoles. KingChain aircraft cable is made in accordance with US Federal Specification RR-W-410D. The cable is hot-dipped galvanized for long lasting durability and moderate corrosion resistance. The 7×7 construction consists of 7 individual wires laid in a spiral around a center King wire to form a strand. Seven strands are then wound together to form a cable. This construction provides good strength, good flexibility and good abrasion resistance. This cable has a Safe Working Load (SWL) of 340 lbs. (154 kg). Its breaking strength is 5 times the SWL (design factor 5:1). Any breaking strength ratings are listed for comparison purposes only. Actual operating loads may vary but should not exceed the recommended design factor of 20% of the products breaking strength. Not intended for aircraft use.

– 1/8 in. cable diameter, 7×7 construction
– 500 ft. L
– 340 lbs. (154 kg) safe work load (SWL)
– Uncoated, high-strength cable
– Galvanized finish provides good corrosion and rust resistance
– Good strength, flexibility and abrasion resistance
– Reeled 8 in. Dia reel
