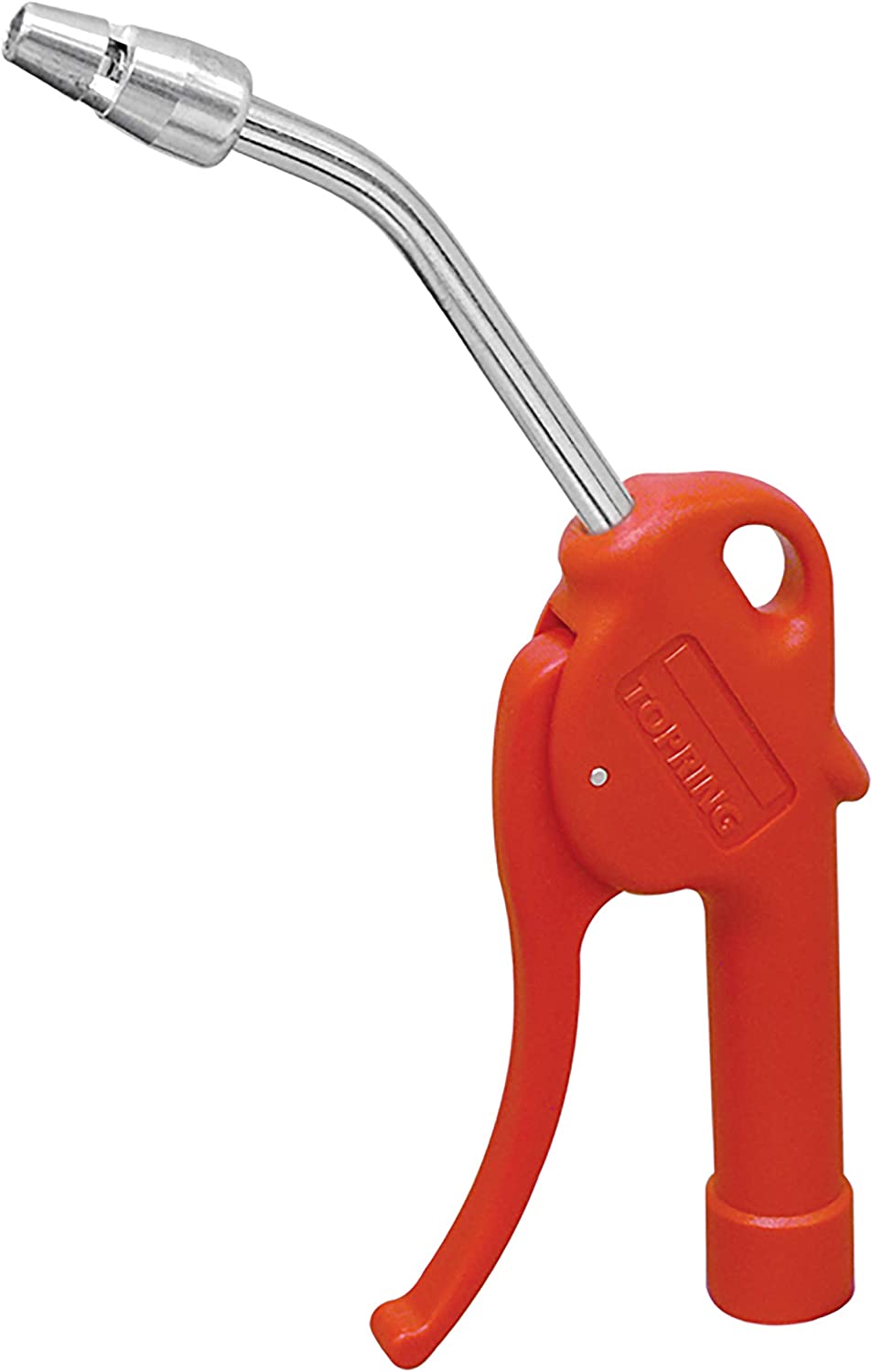

TOPRING Airpro safety high flow blow gun venturi nozzle – 8 mm x 10 cm tube 60.386

Technical specifications and certifications

• Red with 8 mm tube x 10 cm (4″)
• Noise Level at 87 PSI: 83.7 dB
• Air Consumption at 87 PSI: 8.3 SCFM
• Maximum Working Pressure: 150 PSI
• Maximum Output Thrust at 116 PSI: 0.72 lbf
• Working Temperature: -10 to 80 °C
• Connection: 1/4 (F) NPT

Material(s):

• Body: Acetal plastic (POM)
• Nozzle: Plated steel/stainless steel/Aluminum
• Valve: Acetal plastic (POM)
• Springs: Stainless steel
• Seals: Nitrile rubber

Features and benefits

• Powerful safety blow guns
• Venturi nozzle increases the available thrust
• If the tip of the nozzle is blocked, the airflow will escape through side holes and the static pressure will remain under 30 PSI

Operation and installation

HOW IT WORKS: VENTURI NOZZLE

Airflow speeds up as it passes through the nozzle, drawing in ambient air through two side holes. The increased velocity and increased volume of air exiting the nozzle amplify thrust

If the tip of the nozzle is blocked, the air escapes through the side holes and the static pressure remains under 30 PSI

Caution

• Users should never use blow guns to clean themselves
• A vacuum or a safety cleaning unit should be used instead

Applications

• Clearing away chips and shavings, cleaning of parts and machines, blowing, drying and dust removal from parts and work areas.
• For machine and woodworking shops, construction, lumber mills, paper mills, textile mills, foundries, transportation, bakeries and food processing, rubber and plastic manufacturing plants, general cleanup and maintenance
